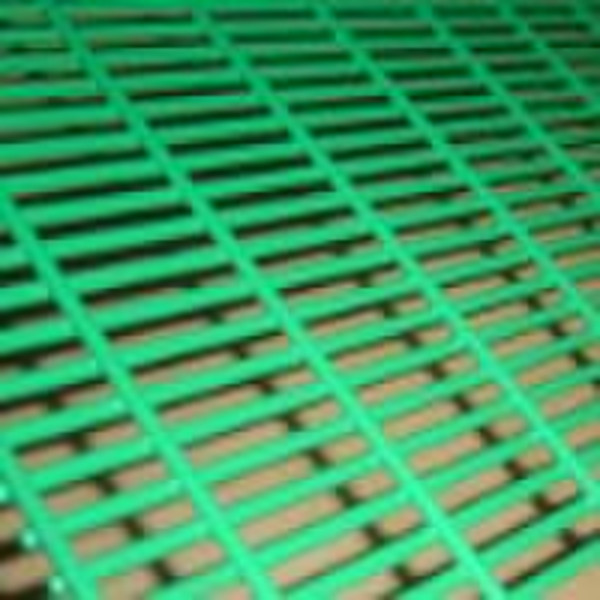

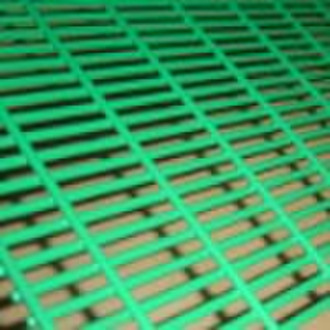

Welded Wire Mesh (Galvanized and PVC Coated)

Welded Wire Mesh Welded wiremesh is processed by welding two wires where they intersect. With the wires welded at each intersection point, welded wiremesh maintains its shape when stressed. For fencing,welded wire meshcan meet your perimeter security needs while blending in with the back ground. Material:Low carbon steel wire, stainless steel wireSurface Treatment: galvanized and plastic coated.- Hot dipgalvanized before/after welding- Electro galvanized before/after welding - PVC coated after weldingSpecification Welded Wire Mesh Specification of Welded Wire Mesh:OpeningWire Diameter<BWG>In inchIn metric unit(mm)1/4" x 1/4"6.4mm x 6.4mm22,23,243/8" x 3/8"10.6mm x 10.6mm19,20,21,221/2" x 1/2"12.7mm x 12.7mm16,17,18,19,20,21,22,235/8" x 5/8"16mm x 16mm18,19,20,21,3/4" x 3/4"19.1mm x 19.1mm16,17,18,19,20,211" x 1/2"25.4mm x 12.7mm16,17,18,19,20,211-1/2" x 1-1/2"38mm x 38mm14,15,16,17,18,191" x 2"25.4mm x 50.8mm14,15,162" x 2"50.8mm x 50.8mm12,13,14,15,16Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
